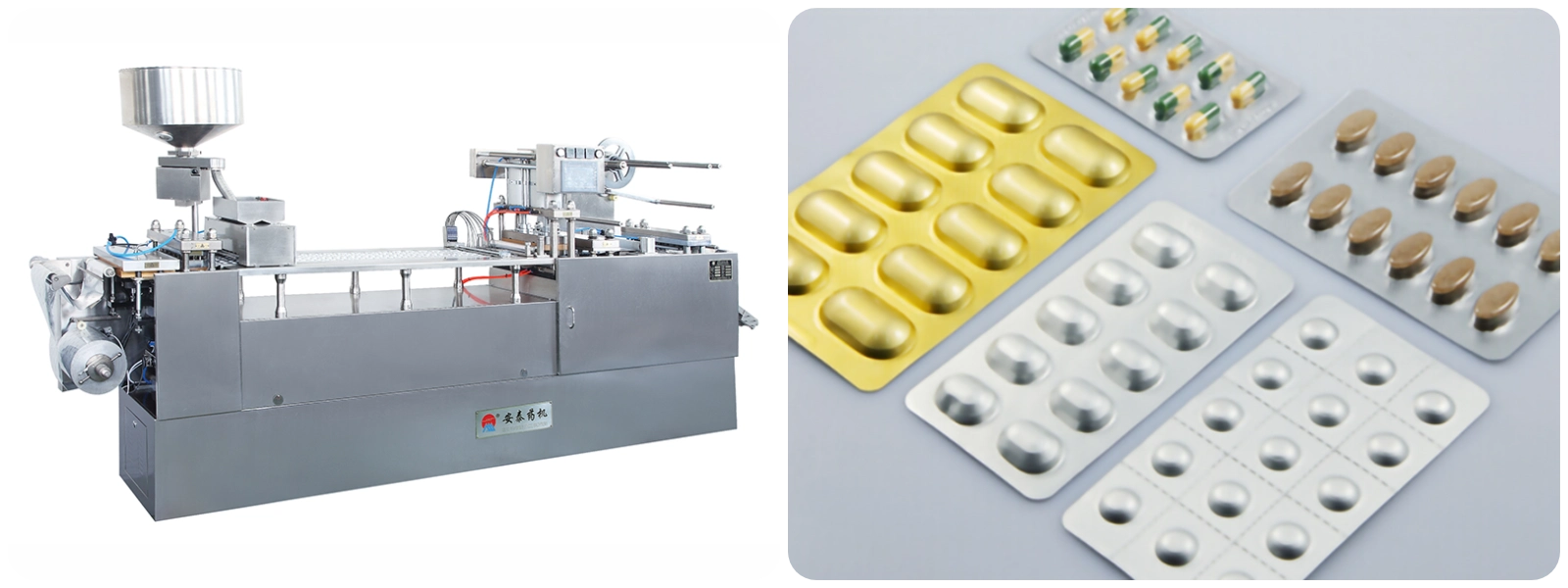

DPP-250B-I Blister Packaging Machine
DPP-250B-I Blister Packaging Machine

It is the latest generation product in our company which adopting PLC Human Interface, with frequency Converter, high automation, easy operation, novel figure, all-round-functions, advanced technology, stable running, durable life, conforms to "GMP Standard". It is an ideal blister packaging machine for AL/PL, AL/AL, Paper/PL packaging. It has passed Province technology production authentication.


Product INTRODUCTION

Features

1. Equipped with inductive self-checking mechanism, it can eliminate the waste plate  with lack of particle, the qualified rate reaches 100%. (Option)

2. The heat sealing station is fixed, the distances between forming, perforation and  punching etc. Units can be adjusted freely on the same plane and it is suitable for  all kinds of dimensions with high precision, strong adaptability.

3. Flat structure, registration heating, mechanic(positive pressure) forming, up and down net web, cylinder heating sealing , manipulator draw, adjustable stroke, lower noise and steady of operation.

4. Main transmission adopts imported gear reducer, with excellent performance, lower noise, long life, stable operation.

5. Cursor tracking register, sealing with tidiness and good-looking appearance. (The body can be manufactured separately in order to easily transport the machine into workshop). (Option)

6. It can be equipped with optical fiber or photographing checking device according to the customers' requirements.


Main Technical Parameters

Cutting Frequency (Times/min)

AL/AL20-30, Al/plastic paper/plastic25-35

Max. Forming area and depth (mm)

AL/AL:240*150*9 AL/PL:240*150*26

Stroke (mm)

40-160 can be manufactured as user's requirements

Standard Plate(mm)

80*57 can be manufactured as user's requirements

Air Pressure(Mpa)

0.4-0.6

Air supply

≥0.3 m³/min

Total Power

380V/220V 50Hz 6.2kw

Main Motor Power (kw)

1.5

Forming Aluminum(mm)

0.085-0.1*250

PVC Hard Pieces(mm)

0.15-0.5*250

PTP Aluminum Foil(mm)

0.02-0.035*250

Dialysis Paper(mm)

50-100g*250

Mould Cooling

tap water or recycling water

Overall Dimensions(mm)

2710*720*1600(L*W*H)

Weight (kg)

1600


DPP-250B-I Blister Packaging Machine

Wecaps Blister Packaging Machine
  • Professional and Complete Service Solutions
    Professional and Complete Service Solutions

    Wecaps offers a wide array of products tailored to meet the specific needs of the food, medicine, and related industries. Our range includes cutting-edge machines like automatic capsule fillers, blister packagers, cartoners, tablet presses, counters, granulators, coaters, and ovens.These machines are equipped with state-of-the-art technology to ensure top-notch performance, simplifying your production processes and effortlessly adjusting to your changing needs.

  • Global Compliance and Certifications
    Global Compliance and Certifications

    At Wecaps, we rigorously comply with regulatory standards in your chosen export destinations.Our machines proudly carry the esteemed CE certification from the European Union, ensuring strict adherence to the highest safety and quality benchmarks. Our packaging equipment production base spans over 12,000 square meters of modern industrial workshop, adhering to stringent SGS and ISO 9001:2015 quality certification management systems.

  • After-Sales
    Delivery & Installation & Commissioning & After-Sales

    Wecaps offers efficient logistics solutions to ensure secure and prompt delivery worldwide.Additionally, our comprehensive after-sales support ensures swift dispatch of highly experienced technicians to promptly address and resolve any hardware faults, providing timely assistance and solutions. We provide ongoing maintenance services to optimize performance, prevent disruptions, and address any evolving needs.

  • Tailored Solutions For The Pharmaceutical Industry
    Tailored Solutions For The Pharmaceutical Industry

    Wecaps offers customization options to address the specific needs of your production processes. With 40 years of experience in the pharmaceutical sector, we can offer comprehensive turn-key solutions encompassing evaluation, design, installation, commissioning, and ongoing maintenance tailored specifically for the pharmaceutical industry. Opt for our comprehensive pharmaceutical solutions to bolster your success in the pharmaceutical industry.
